English
français
español
português
русский
한국의
हिंदी
العربية
فارسی
Việt Nam
italiano
logo
Opening Hours
Mon - Sat 8.00 - 18.00
Call us
+86-185 1669 6028
Email us
steelsino@steelsino.com
banner
  • UNS N06601, 2.4851, Inconel 601 Alloy
  • UNS N06601, 2.4851, Inconel 601 Alloy for sale
  • UNS N06601, 2.4851, Inconel 601 Alloy for sale
  • UNS N06601, 2.4851, Inconel 601 Alloy for sale
  • UNS N06601, 2.4851, Inconel 601 Alloy
  • UNS N06601, 2.4851, Inconel 601 Alloy
  • UNS N06601, 2.4851, Inconel 601 Alloy
  • UNS N06601, 2.4851, Inconel 601 Alloy

UNS N06601, 2.4851, Inconel 601 Alloy

  • Grade:
Interested in this Ad? Contact the Seller!
toux Janet Chang

+86-185 1669 6028

Click To Email Seller



Share this ad

Pinterest Email LinkedIn Google+ Facebook Twitter Addthis

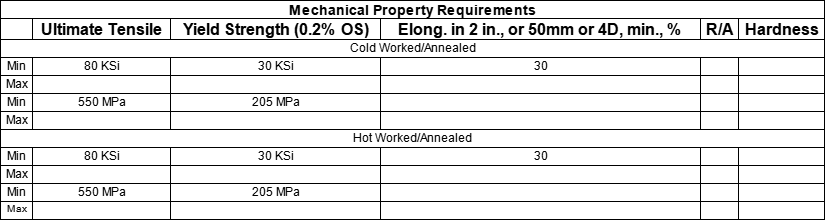

Specification, Chemical & Mechanical Performance

Heat Resistant Alloys

UNS N06601, 2.4851, comparable to Inconel 601 Alloy

UNS N06601 is a nickel-chromium alloy with an addition of aluminum that provides high mechanical properties at elevated temperatures, and superior resistance to oxidation, carburization and sulfurization. It excels particularly in descaling resistance in cyclic oxidation applications with a high temperature variation, and is therefore used in various parts for heat treatment furnaces, diesel vehicle glow plugs, and the like.

Provide froms,

UNS-N06601,-24851,-Inconel-601-Alloy-ManufacturerUNS-N06601,-24851,-Inconel-601-Alloy-For-sale

Workability

Hot working is relatively easy with N06601. For hot working, temperature should be between 1050 and 1200℃, although light work may be done at temperature as low as 850℃. The temperature range between 650 and 850℃ should be avoided as cracking may occur. After hot working, we also recommend cooling through the temperature range of 500 to 800℃ as fast as possible to avoid carbide precipitation. N06601 has superior cold workability, similar to Type 310S and Alloy 800.

Weldability

As with standard austenitic stainless steels, N06601 may be welded using techniques such as TIG, MIG, and shield metal arc welding. For edge preparation, mechanical cutting is desirable. Wide U- and V-groove angles should be used. Care should be taken to ensure its welding portion is clean as N06601 is sensitive to surface contamination.

Heat Treatment

After cold working, softening occurs at around 900℃. If high temperature strength is required, we recommend solution treatment at 1100 to 1200℃. Cooling is done with water, through air cooling may be used as well for thinner material. We recommend cooling though the temperature range of 500 to 800℃ as fast as possible to avoid carbide precipitation.

Machinability

As a high-nickel alloy, N06601 is not as machinable as an austenitic stainless steel. A high-speed steel cutting tool may be used, though a sintered carbide tool is recommended. Also, the feed speed should be somewhat reduced, aiming for deep cutting. The recommended lathe feed speeds are as follows:

  • High-speed steel tool: 1050~1350mm/min
  • Sintered carbide tool: 3000~5250mm/min

After machine work, lubricants should be completely removed before welding or heat treating.

Applications

Muffle furnaces, baskets and other furnace parts, industrial heat treatment furnace parts, special glass melting furnace parts, automobile glow plug parts, automobile exhaust gas sensor covers.

UNS-N06601,-24851,-Inconel-601-Alloy-Professional-Manufacturer

UNS-N06601,-24851,-Inconel-601-Alloy-Manufacturer

UNS-N06601,-24851,-Inconel-601-Alloy-In-China

UNS-N06601,-24851,-Inconel-601-Alloy-Low-Price

return
