Specifiche, Chemical & prestazioni meccaniche

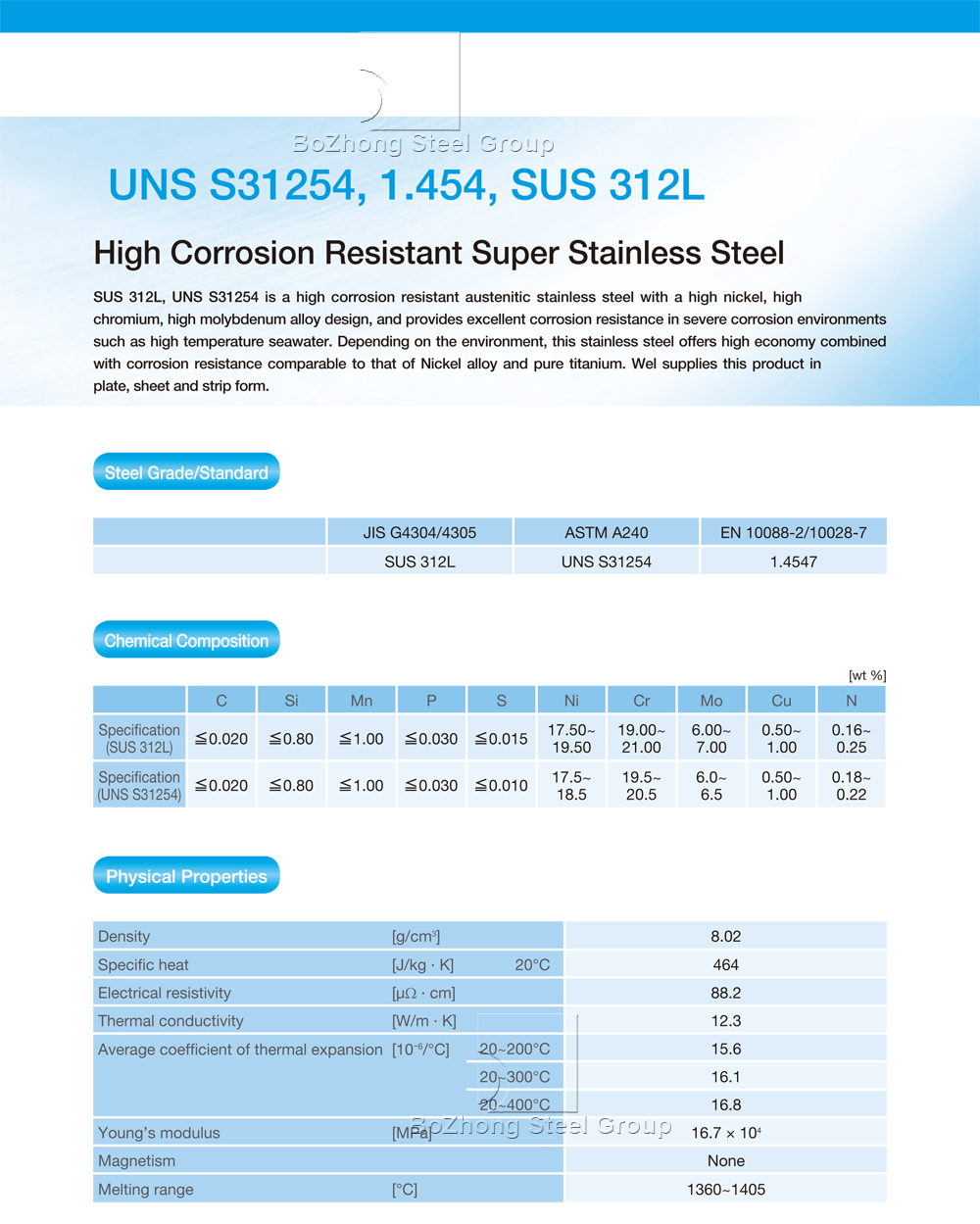

UNS S31254, 1.4547, SUS 312L - Super Austenitic Stainless Steel
SUS 312L, UNS S31254 is a high corrosion resistant austenitic stainless steel with a high nickel, high chromium, high molybdenum alloy design, and provides excellent corrosion resistance in severe corrosion environments such as high temperature seawater. Depending on the environment, this stainless steel offers high economy combined with corrosion resistance comparable to that of Nickel alloy and pure titanium. Shanghai BoZhong Steel Group supplies this product in plate, sheet, strip form, Pipe and Flange.
If you have artwork or drawing, we could produce basing on your request.

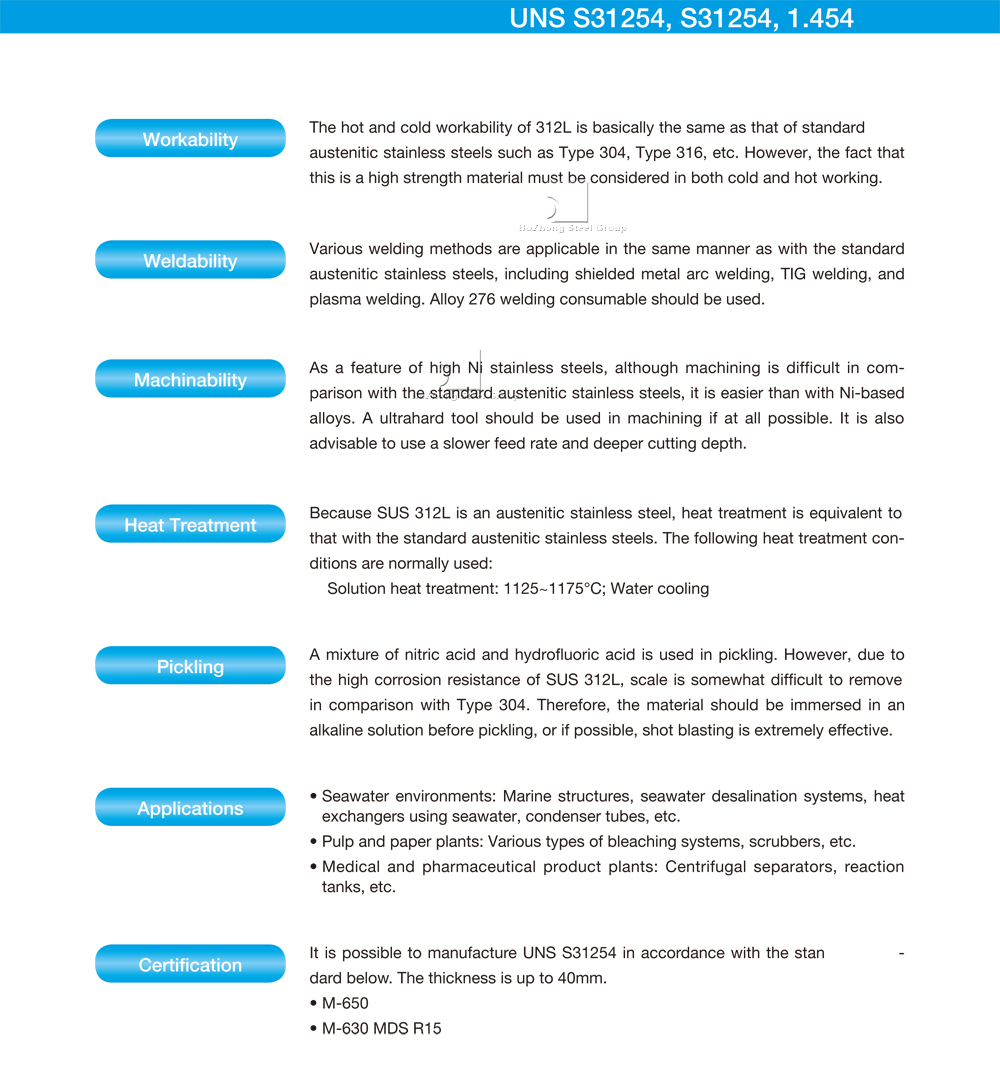

lavorabilità
The hot and cold workability of SUS 312L is basically the same as that of standard austenitic stainless steels such as Type 304, Type 316, etc. However, the fact that this is a high strength material must be considered in both cold and hot working.
saldabilità
Various welding methods are applicable in the same manner as with the standard austenitic stainless steels, including shielded metal arc welding, TIG welding, and plasma welding. Alloy 276 welding consumable should be used.
lavorabilità
As a feature of high Ni stainless steels, although machining is difficult in comparison with the standard austenitic stainless steels, it is easier than with Ni-based alloys. A ultrahard tool should be used in machining if at all possible. It is also advisable to use a slower feed rate and deeper cutting depth.
Trattamento termico
Because sus 312L is an austenitic stainless steel, heat treatment is equivalent to that with the standard austenitic stainless steels. The following heat treatment conditions are normally used:
- Trattamento termico della soluzione: 1125 ~ 1175 ℃; Raffreddamento ad acqua
decapaggio
A mixture of nitric acid and hydrofluoric acid is used in pickling. However, due to the high corrosion resistance of SUS 312 L, scale is somewhat difficult to remove in comparison with Type 304. Therefore, the material should be immersed in an alkaline solution before pickling, or if possible, shot blasting is extremely effective.
Applicazioni
- Seawater environments: Marine structures, seawater desalination systems, heat exchangers using seawater, condenser tubes, etc.
- Pulp and paper plants: Various types of bleaching systems, scrubbers, etc.
- Medical and pharmaceutical product plants: Centrifugal separators, reaction tanks, etc.
Certificazione
It is possible to manufacture UNS S31254 in accordance with the NORSOK standard below. The thickness is up to 40mm.
- M-650
- M-630 MDS R15
